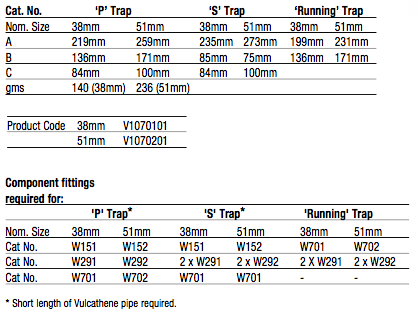

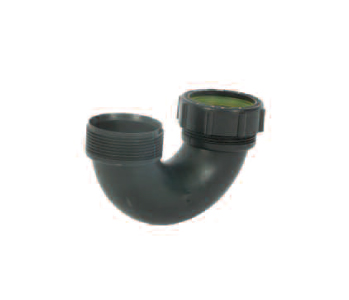

Available in 38mm and 51mm sizes the ‘U’ bend can be combined with other standard fittings from the range to make up ‘P’, ‘S’ and Running Traps with a 76mm trap seal.
In order to make up both ‘P’ and ‘S’ con gurations the addition of a length of Vulcathene mechanical pipe, and a W15 coupler, to one end enables it to be connected to the waste fitting whilst the addition of a W29 loose nut sweep bend converts it into a ‘P’ trap.
The addition of a further W29 make it into a ‘S’ trap. Connecting a W29 to each end of the ‘U’ bend makes up a running trap.
