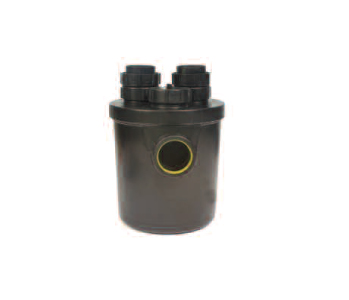

With a 4.5 litre capacity and a 76mm trap seal the W612 is particularly useful for those situations where under-bench height is limited.
When cleaning out the unit, union nuts on the lid should be disconnected, the dip tubes withdrawn and the interior of the dilution chamber carefully
No attempt should be made to separate the lid from the dilution chamber.
For a ‘P’ outlet, a 51mm nut and olive is supplied, and for an ‘S’ outlet, add a W292 51mm bend.
Where it is intended to use the unit as a dilution chamber only, the dip tubes should be omitted. The unit is supplied with dip tubes, nuts, olives and blanking off plug. (Additional dip tubes and blanking off plugs can be
